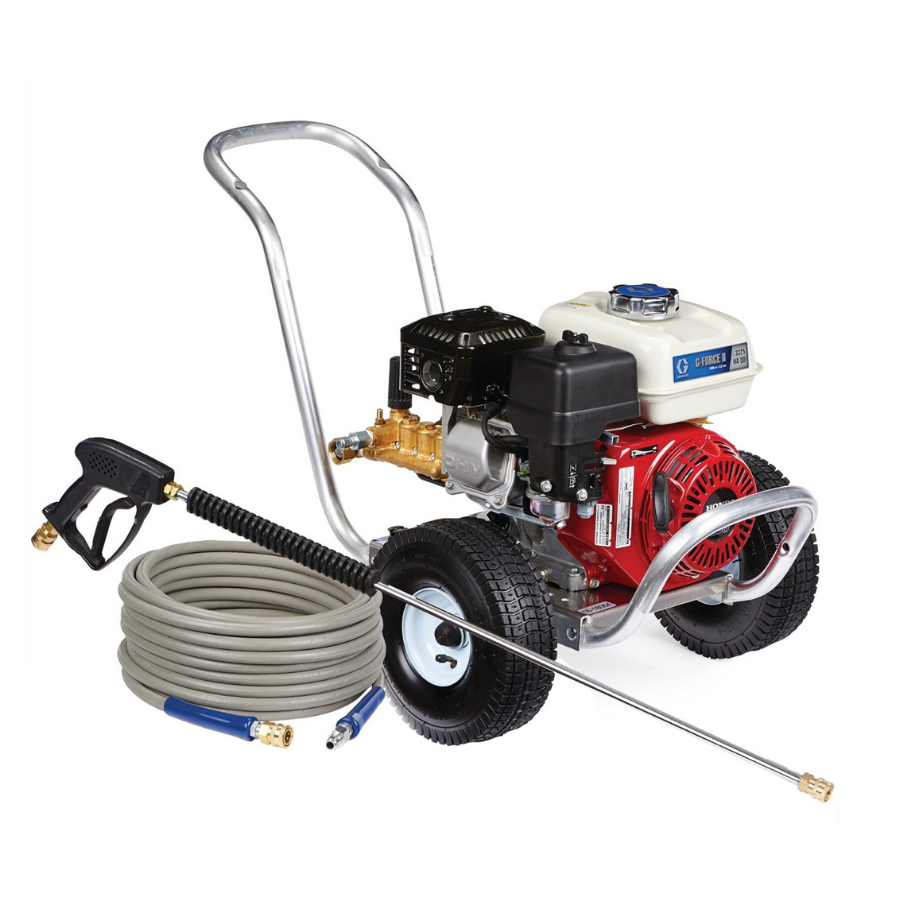

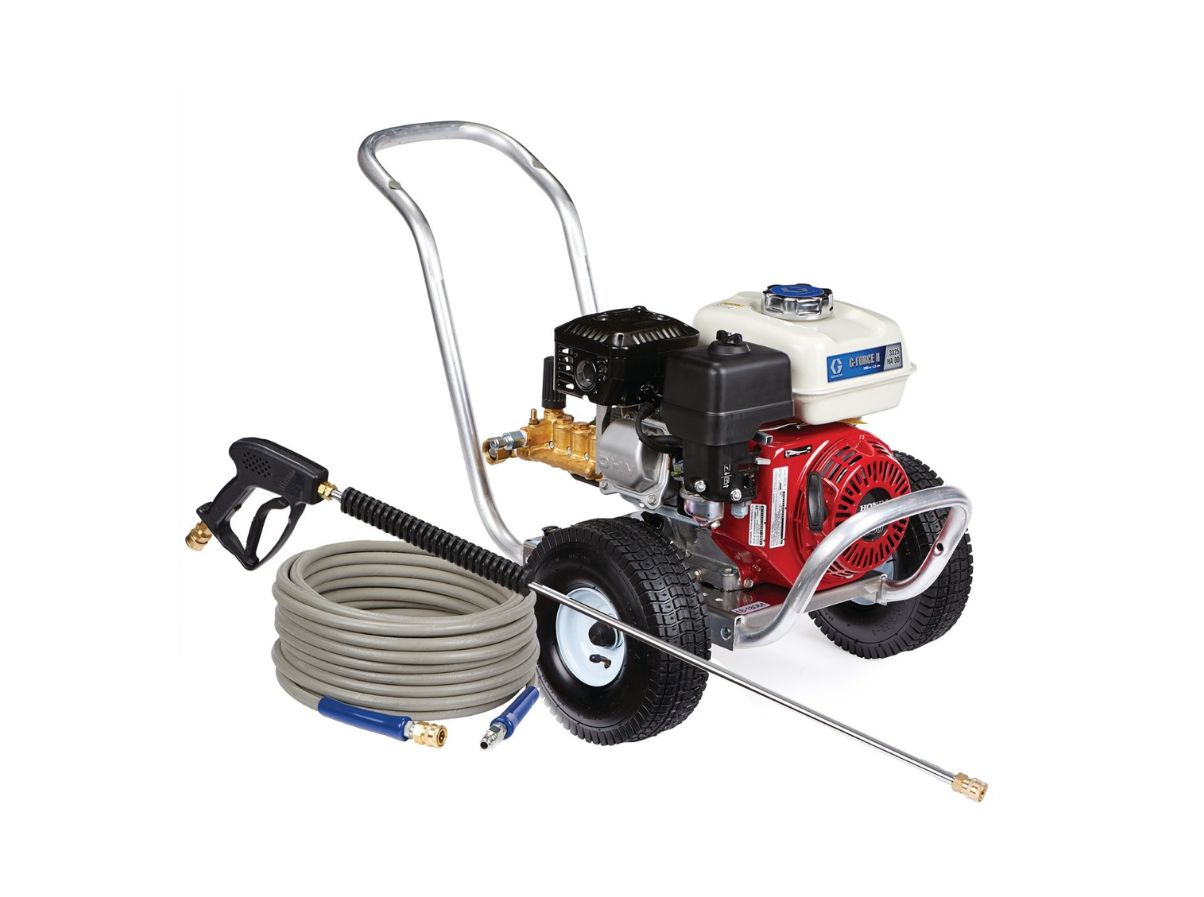

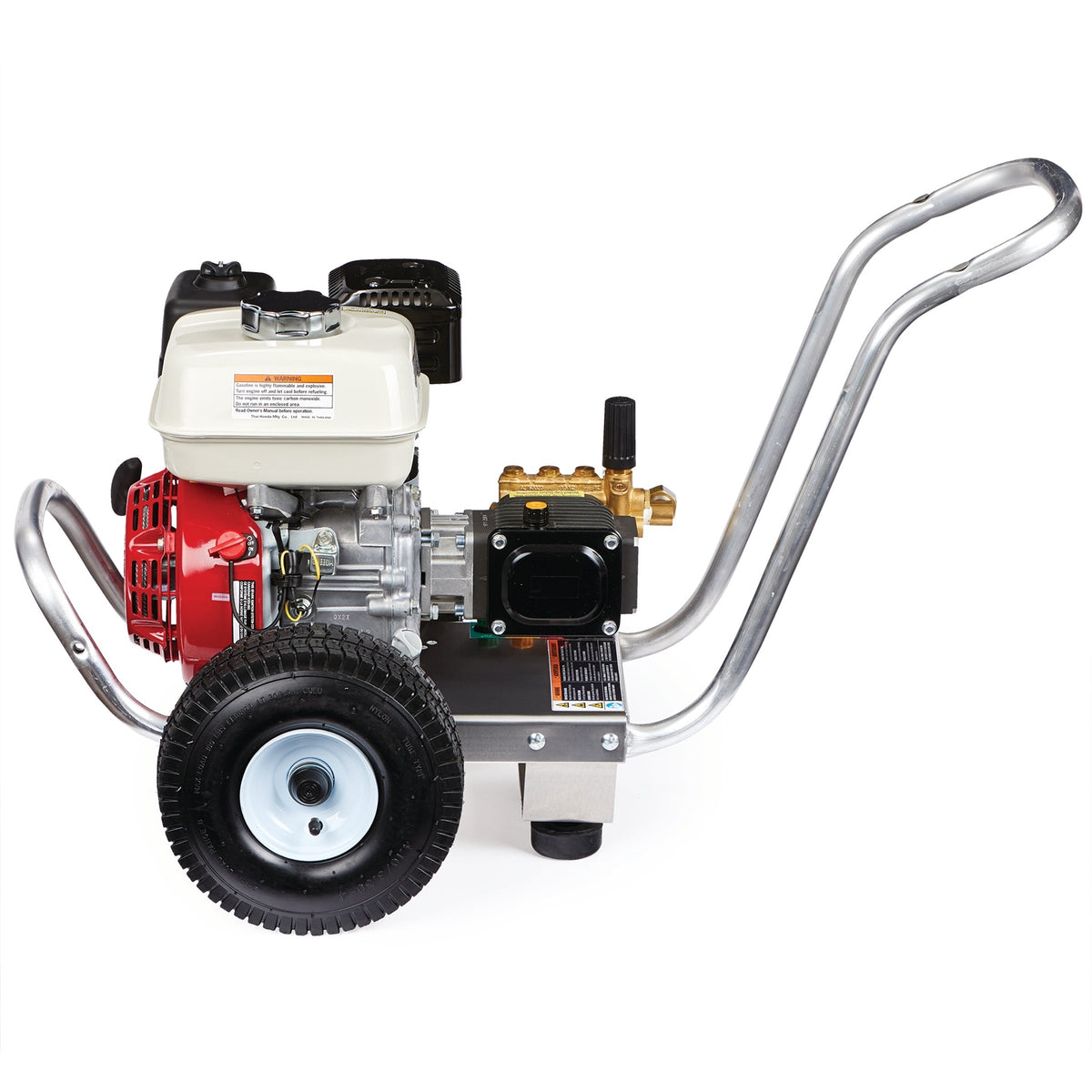

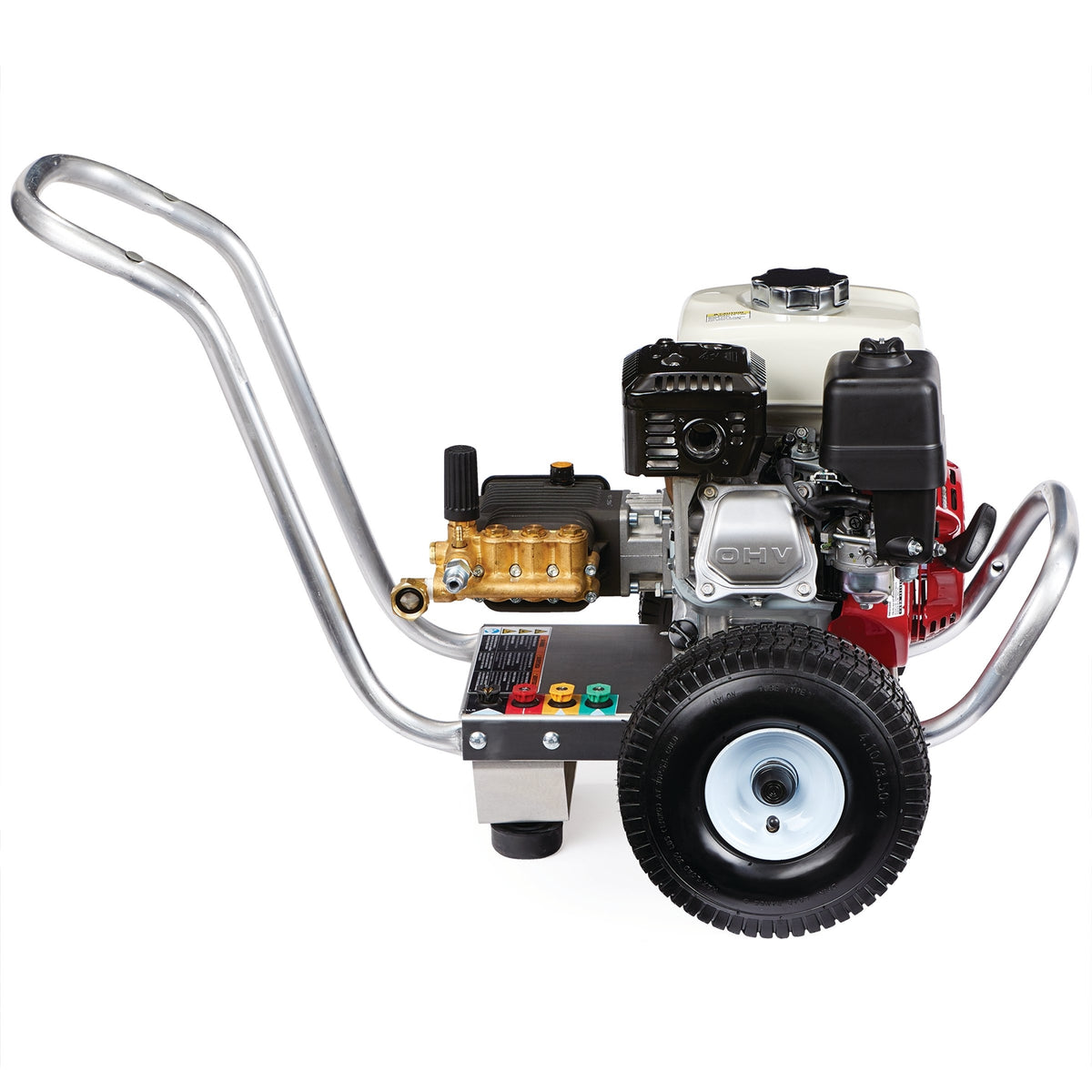

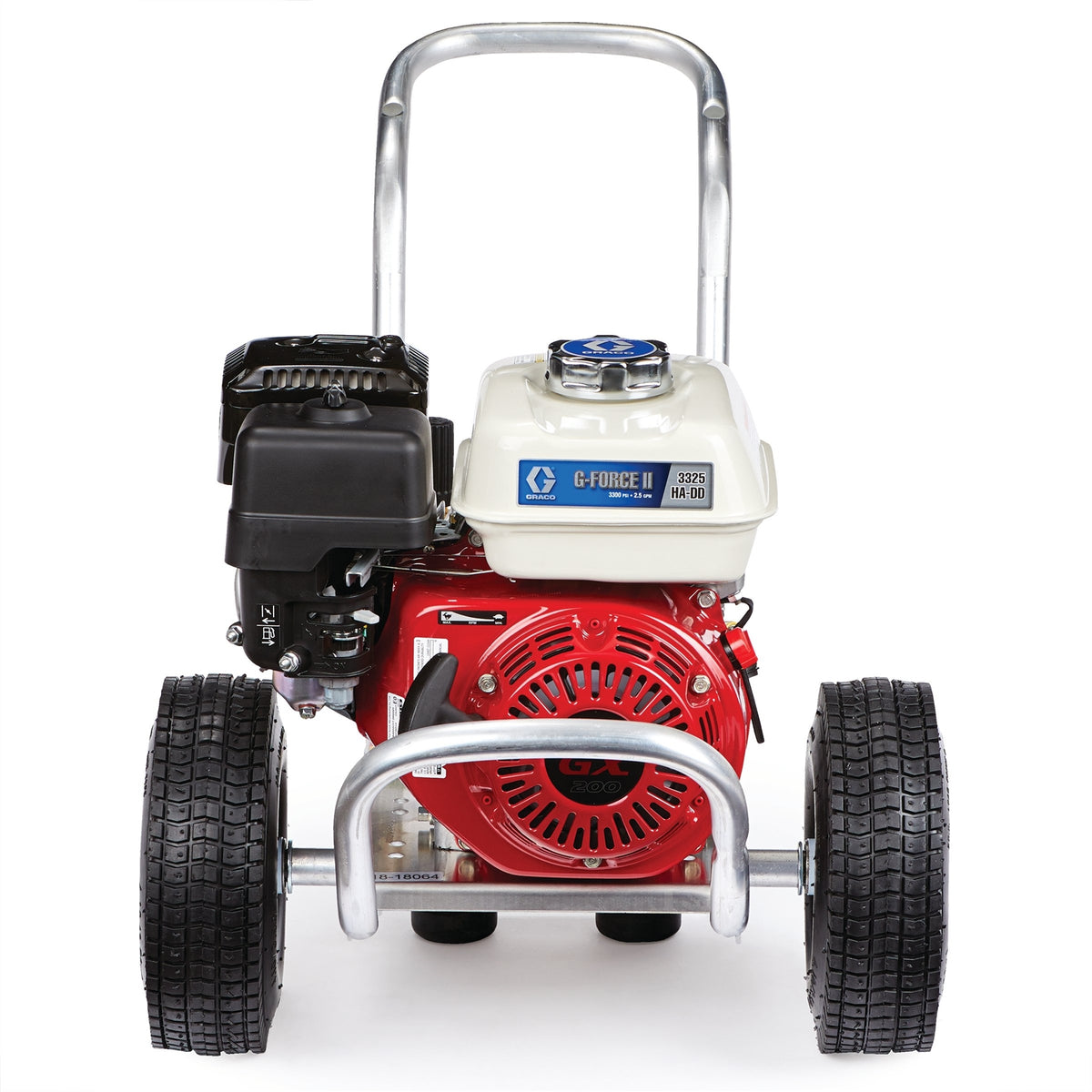

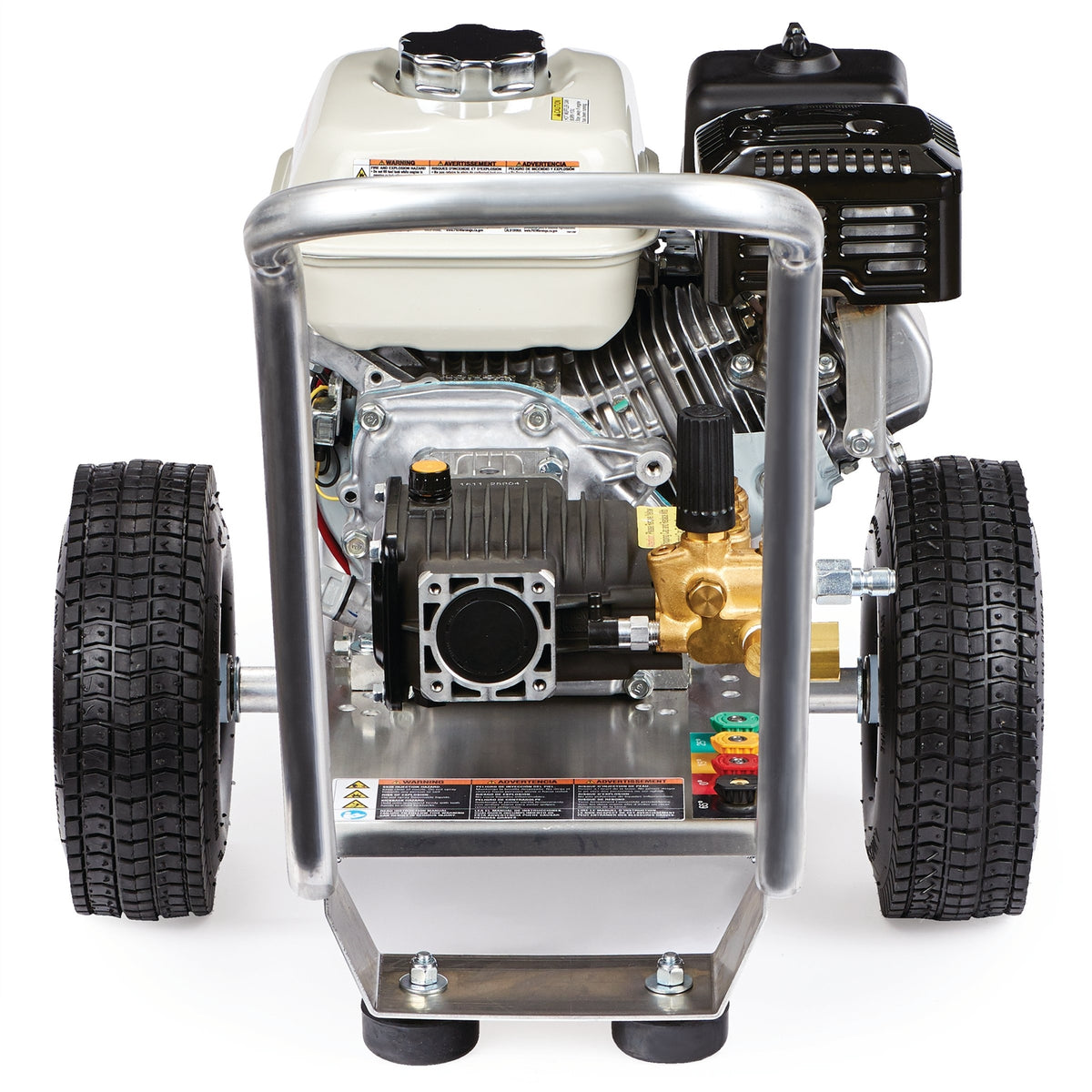

Graco G-Force II 3325 HA-DD Pressure Washer

Key Features of the Graco G-Force II 3325 HA-DD Pressure Washer

Direct Drive

• Few components for a lighter weight machine
• Compact design for better mobility and portability
• Pump is connected to the drive shaft of the engine
• Pump revolutions match to the engineer (around 3500 RPM)

Reliable, AR Triplex Plunger Water Pump and Powerful Honda GX200 Engine

• Powerful, reliable, and easy to power up
• Oil alert automatically powers down the engine to prevent long-lasting damage if the oil levels drop too low
• Internal thermals sensor will prevent the pump from overheating in bypass mode

100% Heavy-Duty Aluminum Frame

• Up to 40% than steel frame, for ultimate portability
• Resistant to corrosion from chemicals and water

EZ Start Pressure Relief for Easier Starting and Integrated Unloader

• Removes the need to pull the gun trigger while powering up the washer
• Uses water bypass pump to stop pressure build-up in the system

Technical Specifications

• Manufacturer: Graco
• Model: G-Force II 3325 HA-DD
• Series: 3325
• Fuel tank capacity: 6.5 L
• Hose length: 152 cm
• Hose length: 15.2 m
• Maximum flow rate: 9.47 L/min
• Maximum working pressure: 227 bar
• Maximum working pressure: 2270 kpa
• Motor series: GX200
• Pump type: Triplex Plunger
• Type: gas pressure washer
• Gas tank capacity: 3.6 liters
• Pump inlet: 3/4 ghf
• Pump outlet: 3/8QC
• Inlet filter: 50 mesh 0.3 mm
• Operating temperature range: 4°C - 63°C
• Sound pressure measured @ 3.1 ft (1 m): 89.6 dB(A)
• Sound pressure per ISO 3744: 103.6 dB(A)
• Length: 101.6 cm
• Width: 57.2cm
• Height: 61.0 cm
• Weight: 26.3 kg
