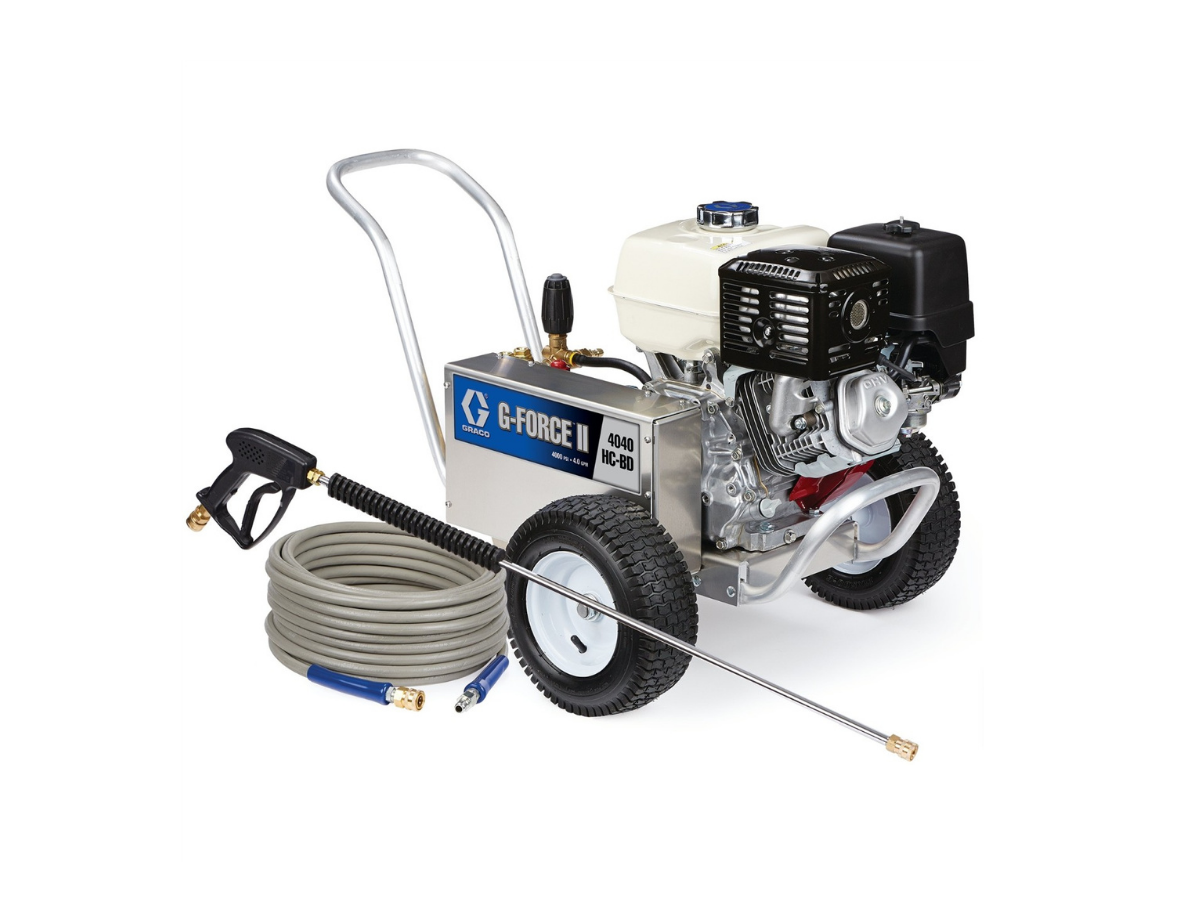

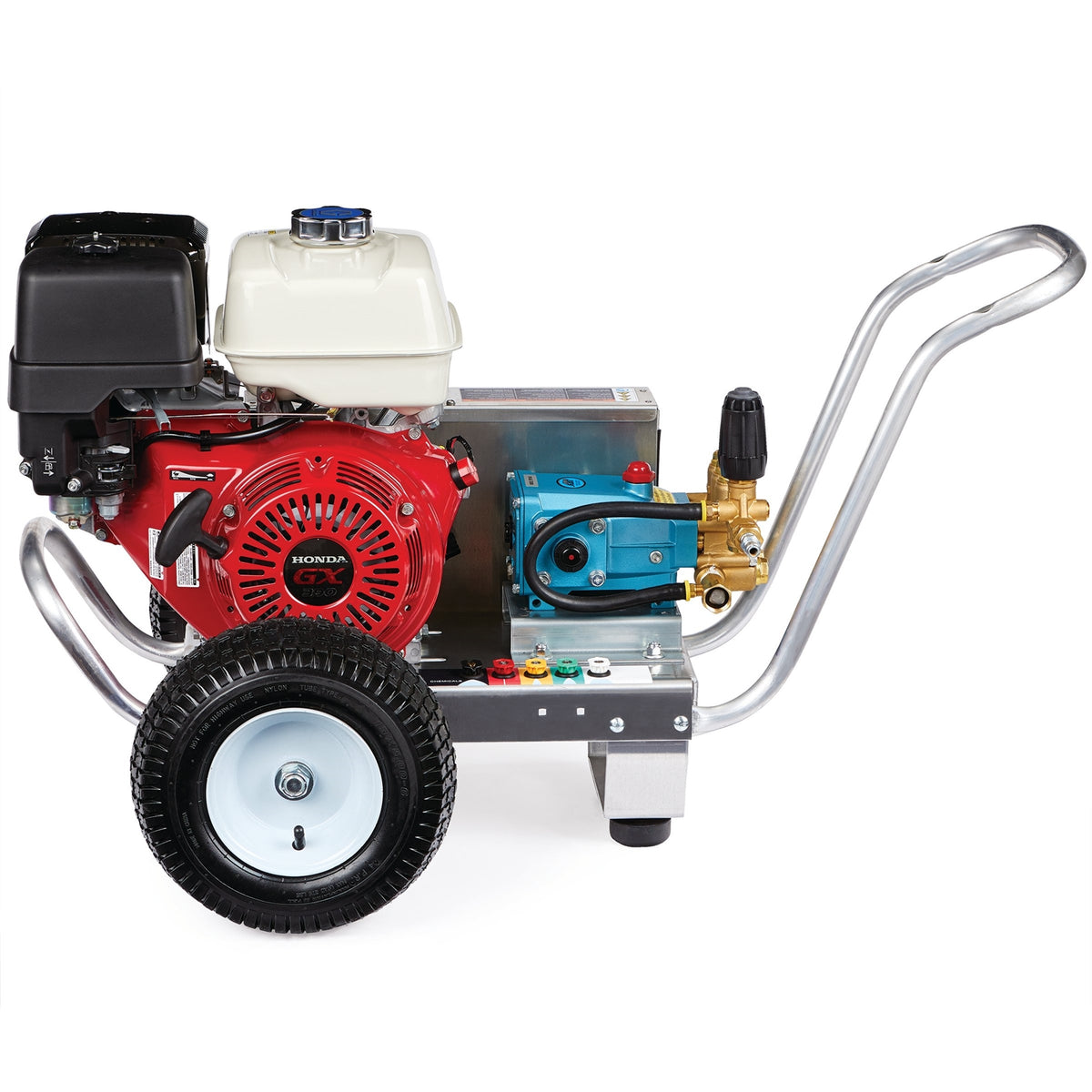

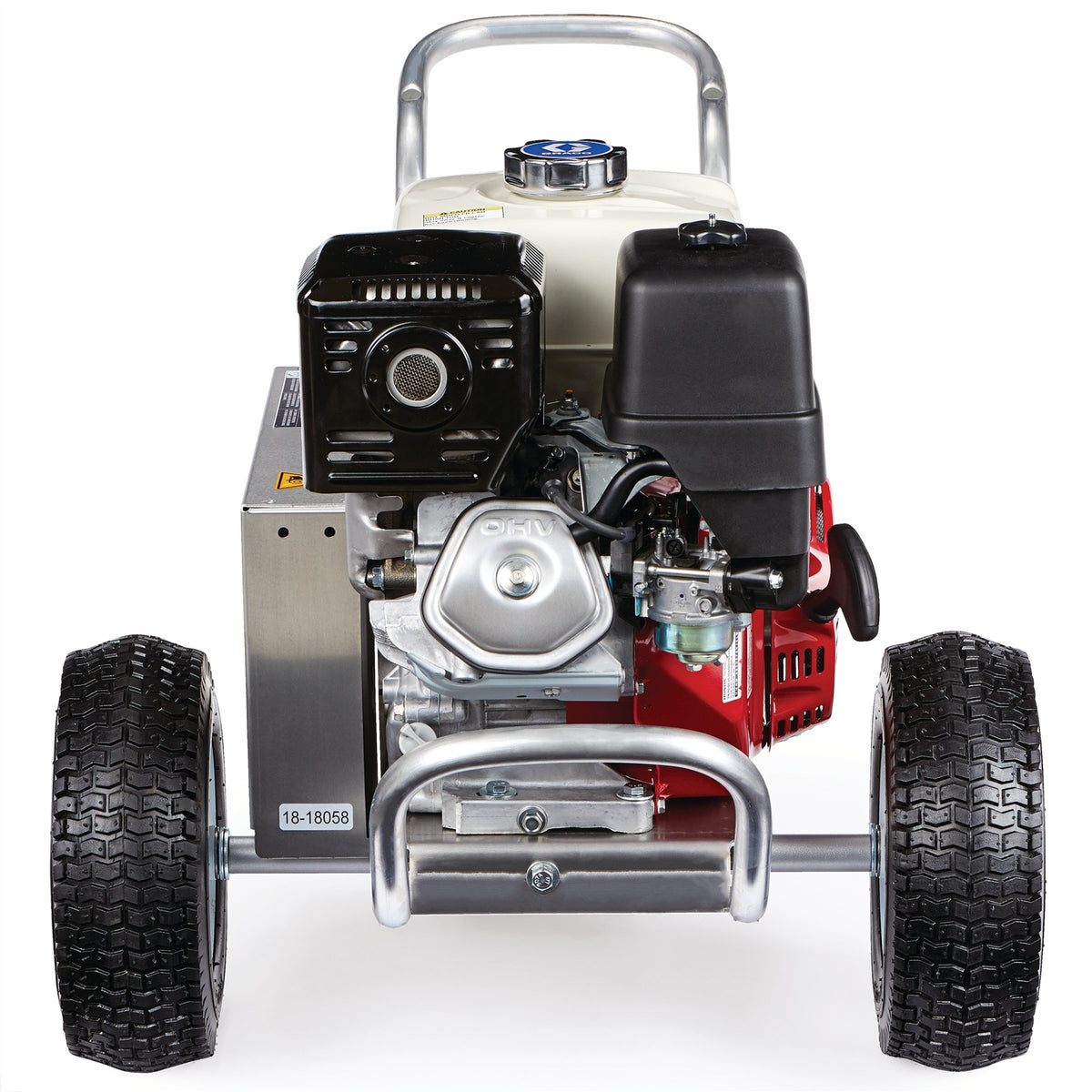

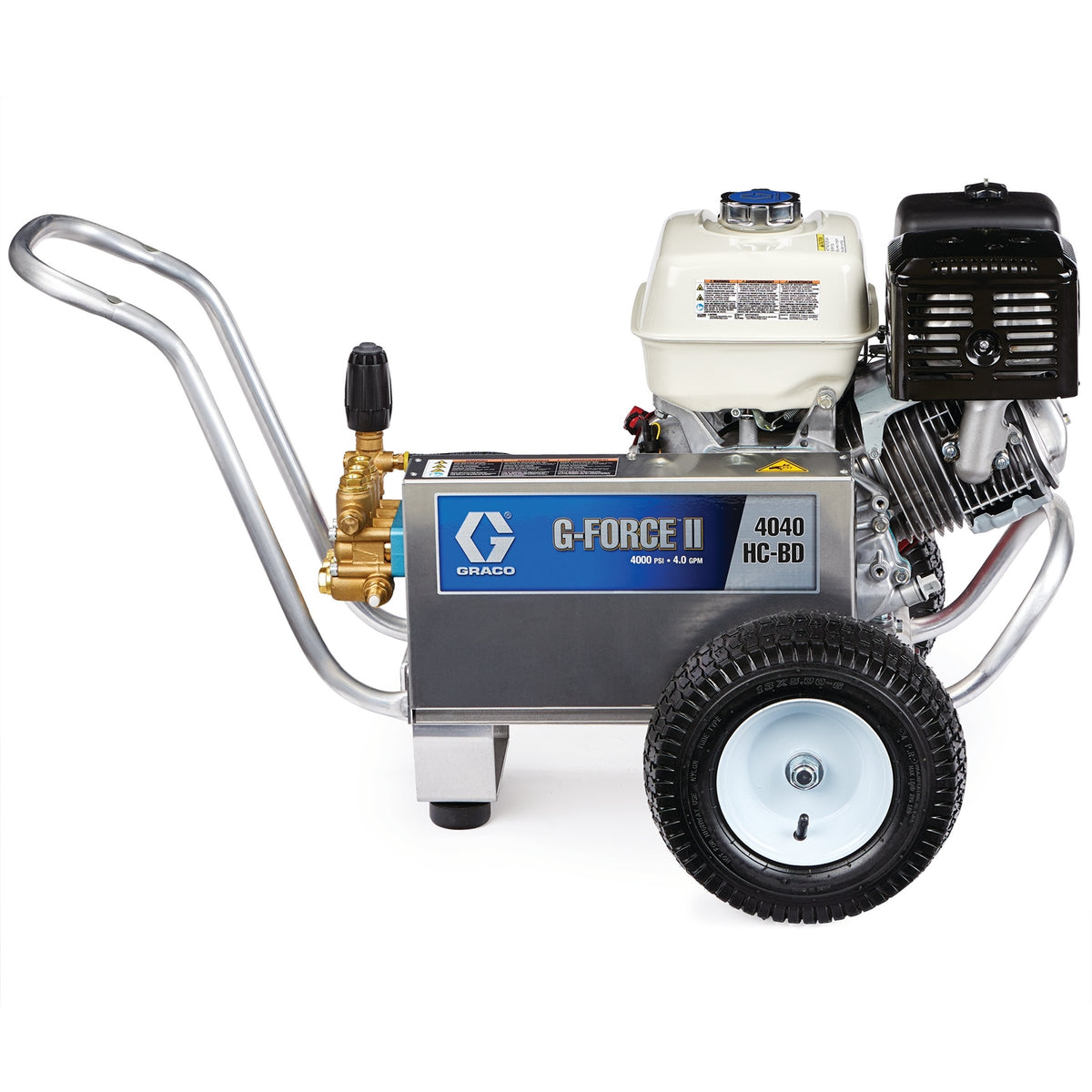

Graco G-Force II 4040 HC-BD Pressure Washer


Graco G-Force II 4040 HC-BD Pressure Washer

Regular price
Regular price Sale price
Sale Sold out
excluding tax
Shipping calculated at checkout.

Call us now 01132310500

View full details


This is a top-of-the-range unit from Graco. This machine is built to work all day, every day. The G-Force II 4040 HG-BD Pressure Washer would suit those who will be using it frequently and for long periods of time, best for professional painters and large contractors. With its powerful CAT pump and belt-drive performance, it can easily handle the toughest jobs.


Key Features of Graco G-Force II 4040 HC-BD Pressure Washer

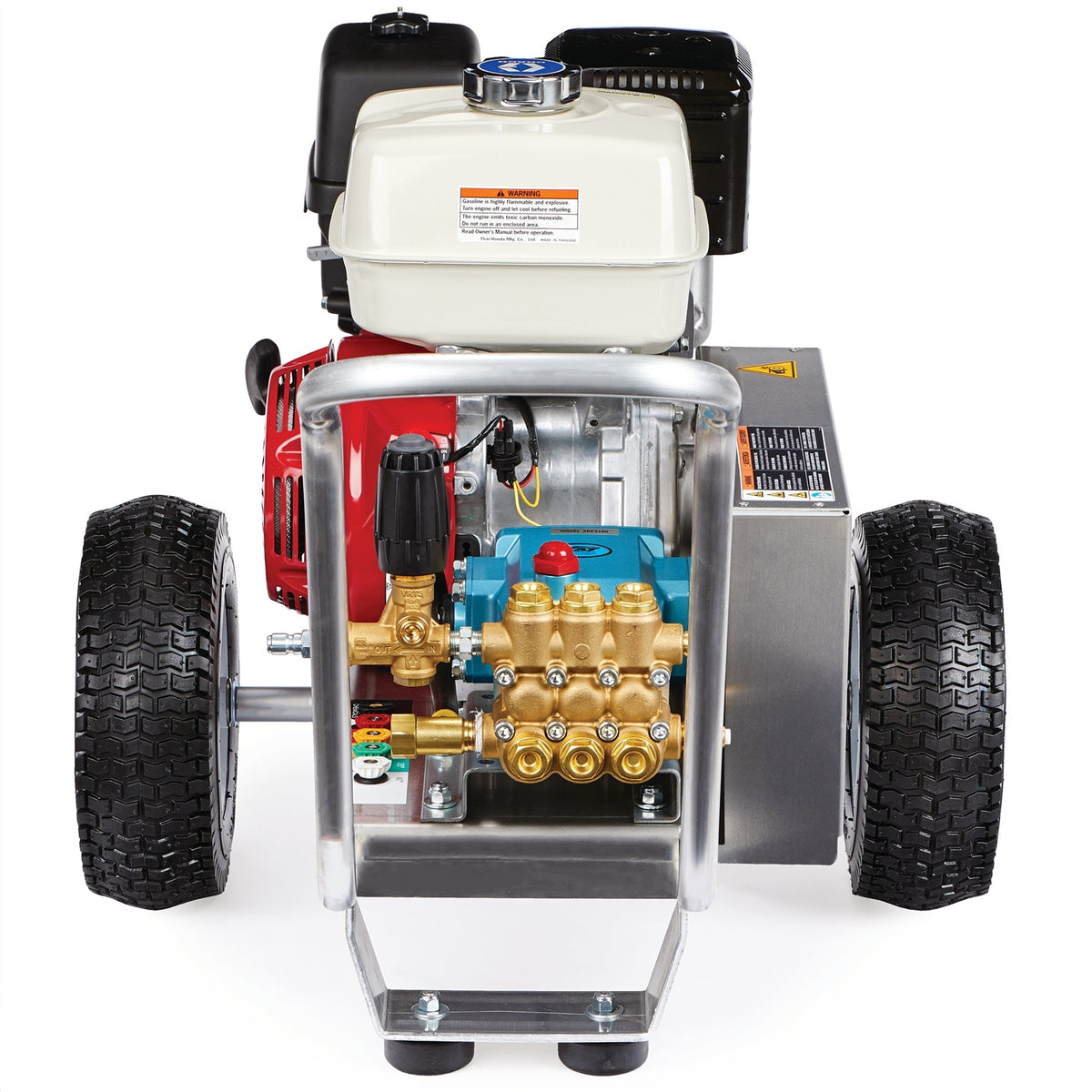

Premium CAT Triplex Water Pump

  • 2X life span than other pumps
  • The longest-lasting and durable pumps on the market
  • The most reliable pump available

Belt Driven

  • Lower RPM (typically 900-1700 RPM) which results in lower operating temperature and a longer-lasting pump
  • Pump is placed away from the engine and includes a crankcase which allows for more oil capacity
  • Pump vibration is less and suffers less pump fatigue

External Pressure Unloader

  • Adjustable pressure and trouble-free
  • Able to match application requirements
  • Extends pump life and keeps water cold

Honda GX390 Engine

  • Powerful, reliable, and easy to power up
  • Oil alert automatically powers down the engine to prevent long-lasting damage if the oil levels drop too low
  • Internal thermals sensor will prevent the pump from overheating in bypass mode

100% Heavy-Duty Aluminum Frame

  • Up to 40% than steel frame, for ultimate portability
  • Resistant to corrosion from chemicals and water

EZ Start Pressure Relief for Easier Starting and Integrated Unloader

  • Removes the need to pull the gun trigger while powering up the washer
  • Uses water bypass pump to stop pressure build-up in the system

Technical Specifications

Fuel Tank Capacity: 6.5 L
Hose Length: 152 cm
Hose Length: 15.2 m
Maximum Flow Rate:15.14 L/min
Maximum Working Pressure: 275 bar
Motor Series: GX390
Pump Type: Triplex Plunger
Type: Gas Pressure Washer
Pump Inlet: 3/4 ghf
Pump Outlet: 3/8 QC
Inlet Filter: 50 mesh 0.3 mm
Operating Temperature Range: 4° C - 63° C
Sound Pressure measured @ 3.1 ft (1 m): 92.2 dB(A)
Sound Power per ISO 3744: 106.4 dB(A)
Length:106.7 cm
Width: 68.6 cm
Height: 66 cm
Weight: 60 kg
