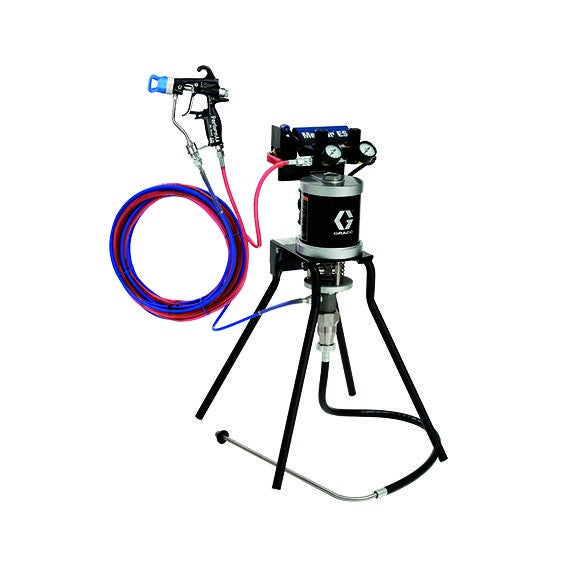

Graco 30:1 Mini Merkur ES stand mount, St/Steel

Code 24F153

Graco 30:1 Mini Merkur ES stand mount, St/Steel

Why not view our NEW RANGE of Masking Products too

Options Price
Graco Mini Merkur ES stand mount, St/Steel
Code 24F153
£1,434.00 inc. VAT
£1,195.00 ex. VAT

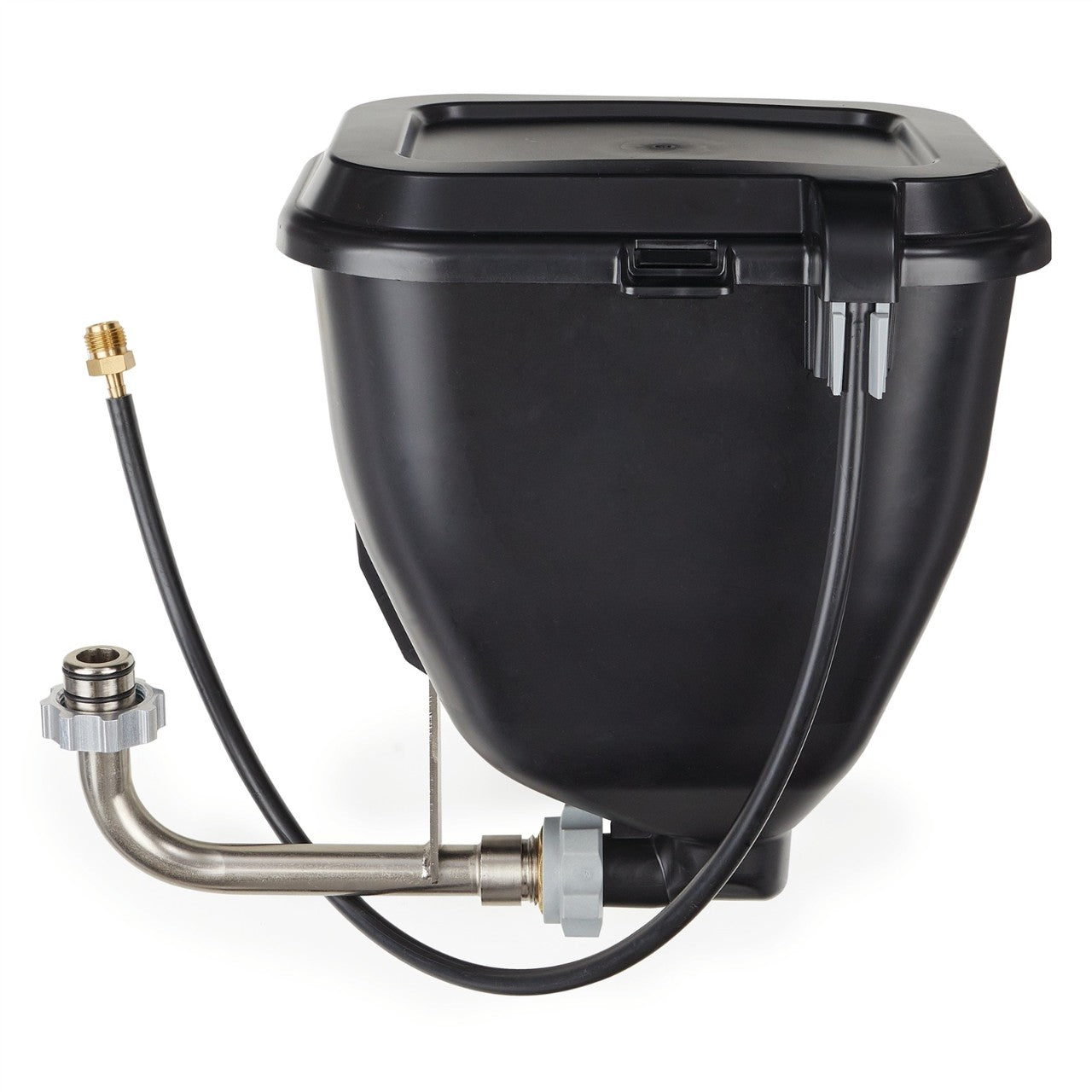

With Hopper
Code 24F153H
£1,554.00 inc. VAT
£1,295.00 ex. VAT

Ready-to-spray finishing package at an affordable price
All Air-Assisted Packages include a 7.5 m (25 ft) fluid hose and air hose,
suction hose, and Graco G40 spray gun with FAA412 tip

• Quick flush system requires less than 1 MINUTE to flush
• Very low material volume required to fill the system
• 2 to 10 years of proven reliability on key system components
• Delivers a superior, consistent spray finish

Need Efficiency and Excellent Spray Performance?
Graco’s Merkur ES has it!
Designed to use less material than the competition and to reduce air usage
and pulsation, the Merkur ES is an Efficient Sprayer.

Technical Specification:

Maximum fluid working pressure
30:1 pumps....207 bar (20.7 MPa, 3000 psi)
Maximum tip orifice size.... 0.483 mm (0.019")
Fluid flow @ 240 cpm..... 1.5 l/min (0.4 gpm)
Max cycle rate..... 240 cpm
Volume per cycle.....6 cc (0.2 oz)
Maximum air inlet pressure....7.0 bar (0.7 MPa, 100 psi)

Package air inlet size....3/8 npt(f)
Package fluid outlet size....1/4 npsm(m)

Air consumption @ 7.0 bar (0.7 MPa, 100 psi) @ 90 cpm
30:1....198 l/min (7 scfm)

Wetted parts
Plated steel pumps......SST, CS, nickel plating, tungsten carbide, PTFE, acetal, leather, UHMWPE
Stainless steel pumps.....SST, tungsten carbide, PTFE, acetal, leather, UHMWPE

Instruction manual.....3A0732

We stock replacement spare parts, repair kits and accessories for the Graco Merkur spray units. call for details

Availability In Stock
GTIN 633955576162
Manufacturer Graco
