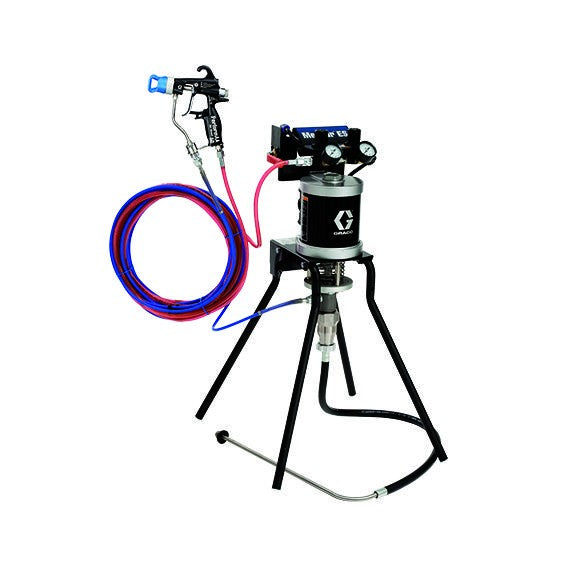

Graco Mini Merkur ES stand mount, St/Steel


Graco Mini Merkur ES stand mount, St/Steel

Regular price
Regular price Sale price
Sale Sold out
excluding tax
Shipping calculated at checkout.

Call us now 01132310500

View full details


Ready-to-spray finishing package at an affordable price
All Air-Assisted Packages include a 7.5 m (25 ft) fluid hose and air hose,
suction hose, and Graco G40 spray gun with FAA412 tip

• Quick flush system requires less than 1 MINUTE to flush
• Very low material volume required to fill the system
• 2 to 10 years of proven reliability on key system components
• Delivers a superior, consistent spray finish

Need Efficiency and Excellent Spray Performance?
Graco’s Merkur ES has it!
Designed to use less material than the competition and to reduce air usage
and pulsation, the Merkur ES is an Efficient Sprayer.


Technical Specification:

Maximum fluid working pressure
30:1 pumps....207 bar (20.7 MPa, 3000 psi)
Maximum tip orifice size.... 0.483 mm (0.019")
Fluid flow @ 240 cpm..... 1.5 l/min (0.4 gpm)
Max cycle rate..... 240 cpm
Volume per cycle.....6 cc (0.2 oz)
Maximum air inlet pressure....7.0 bar (0.7 MPa, 100 psi)

Package air inlet size....3/8 npt(f)
Package fluid outlet size....1/4 npsm(m)

Air consumption @ 7.0 bar (0.7 MPa, 100 psi) @ 90 cpm
30:1....198 l/min (7 scfm)


Wetted parts
Plated steel pumps......SST, CS, nickel plating, tungsten carbide, PTFE, acetal, leather, UHMWPE
Stainless steel pumps.....SST, tungsten carbide, PTFE, acetal, leather, UHMWPE

Instruction manual.....3A0732

We stock replacement spare parts, repair kits and accessories for the Graco Merkur spray units. call for details
